794188-1
Manufacturer:
TE Connectivity
Mfr.Part #:
794188-1
Datasheet:
Description:

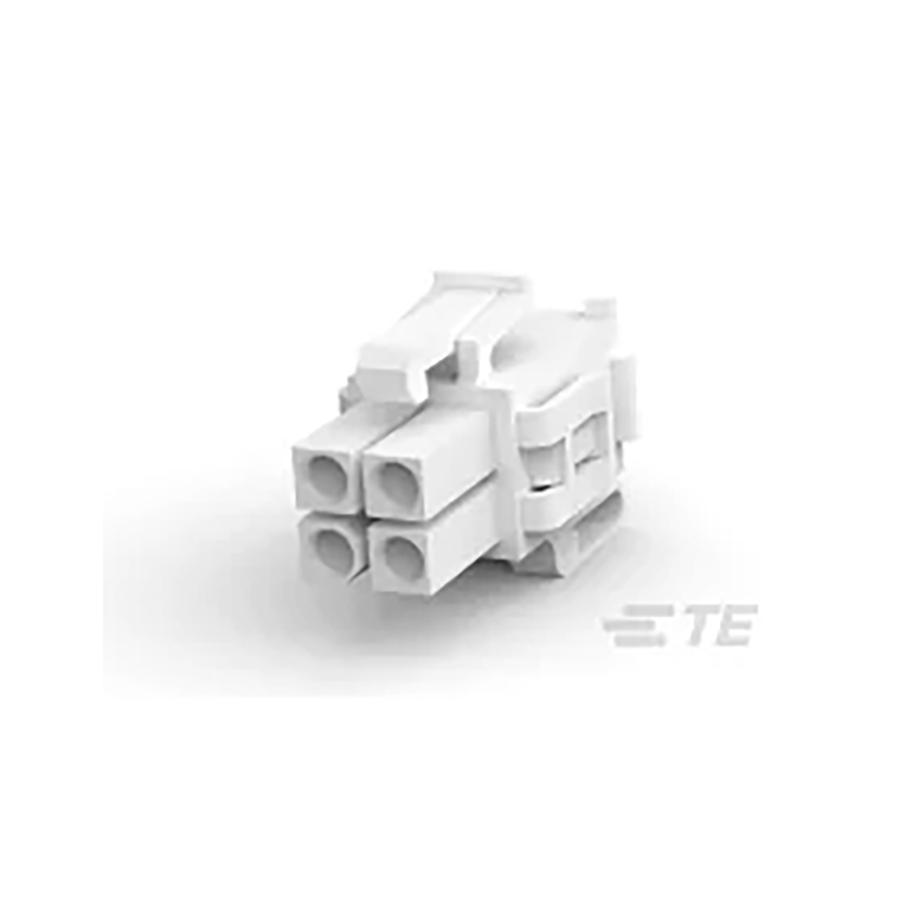

Headers and Wire Housings Free Hanging Socket Number of Positions:4 Pitch:4.1148 mm
| Parameter | Value |
|---|---|
| Length | 14.5 mm |
| Width | 17.25 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 17.25 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 23.75 mm |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Pitch | 4.1148 mm |
| Current Rating | 9.5 A |
| Max Current Rating | 9.5 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Number of Circuits | 4 |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | White |
| Gender | Male |
| Number of Contacts | 4 |
| ELV | Compliant |
| Connector Type | Socket |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing | 162 µm |
| Housing Material | Nylon |
| Fastening Type | Latch |
| Connector System | Wire-to-Board |
| Contact Style | Socket |
| Max Voltage Rating (AC) | 600 V |
| Housing Color | Natural |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
Stock: 1983
Distributors
pcbx
pcbxUnit Price$0.56938
Ext.Price$0.56938
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.56938 | $0.56938 |
| 10 | $0.50099 | $5.00990 |
| 25 | $0.46850 | $11.71250 |
| 50 | $0.45397 | $22.69850 |
| 100 | $0.44286 | $44.28600 |
| 300 | $0.42563 | $127.68900 |
| 500 | $0.40907 | $204.53500 |
| 1000 | $0.39316 | $393.16000 |
| 3000 | $0.37788 | $1133.64000 |
